Storm Fits Inside Jin. I Measured That Before Writing a Byte.

Marvel vs. Capcom has a Jin. It is Jin Saotome from Cyberbots, and he is the character I am deleting. That framing matters more than it sounds, because the interesting question in a stock-layout port is never "can I draw Storm" — it is "does Storm fit in the hole Jin leaves."

The previous Magneto work answered that question by building first and measuring when something broke. This time the order is reversed.

The rule that makes this hard

The build has one constraint that removes every easy answer: the ROM keeps its stock member layout. Twenty-one members, the same sizes, the same names, loaded by an unmodified driver. No mvc.h11m and friends, no expansion, no "we'll just add a chip."

That means the port is a pure exchange. Everything Storm needs has to come out of what Jin gives back, and the only honest way to know that is to count both sides before touching anything.

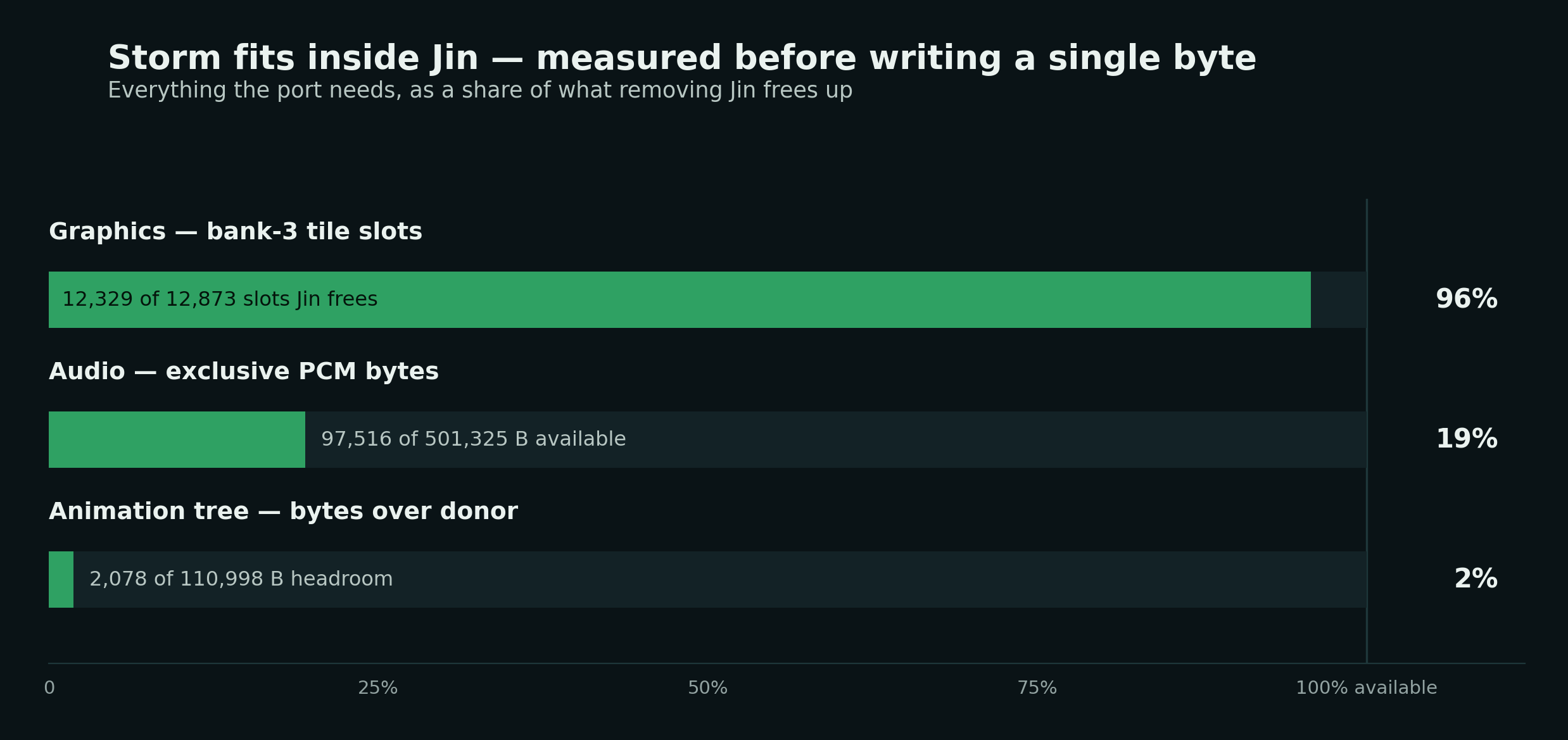

Graphics: +544 slots, and that is the whole margin

Both characters' art was reduced to content hashes and compared per graphics bank — no reliance on which tile slot "belongs" to whom, only on what the bytes are.

544 slots is about 4% of the requirement. It fits, and it fits without reclaiming a single disputed slot — which is exactly why Storm is the import I would build first, and why Magneto (who is 1,495 slots short in his bank) is the one still holding the ledger open.

The single-bank rule is what makes this a per-bank question rather than a total-size question: a character's tile codes carry only 16 bits, and bank bits come from a per-character table byte, so every one of Storm's tiles must live in the same 65,536-slot bank. Jin's bank is bank 3. Storm goes in bank 3 or nowhere.

Audio: the block that was already hers

This one was a genuine surprise.

Disassembling MvC's sound-post routine at $0D5EF0 shows how every character's audio is dispatched:

$0D5EF0  movem.l d0-d3/a0-a1,-(a7)
$0D5EF4  move.w  $52(a6),d2          ; character id
$0D5EFE  move.w  $d5f30(pc,d2.w),d2  ; 23-entry offset table
$0D5F02  lea.l   $d5f30(pc,d2.w),a0  ; -> this character's sound ROW
$0D5F10  add.w   d1,d1 / add.w d1,d1 ; animation slot * 4
$0D5F20  move.w  (a0,d1.w),d1        ; slot -> sound action id
$0D5F24  beq.b   $d5f2a              ; 0 = silent slot
$0D5F26  bsr.w   $d5a7e              ; post it

Every character owns a fixed 128-byte row of 32 four-byte slots — (id, variant id) — reached through an offset table whose alternate characters alias earlier rows. X-Men vs. Street Fighter has the identical structure at $079462 with 124-byte rows.

Reading both games' tables out gives the blocks:

Storm and Jin were allocated the same block number in their respective games. Seven of her eight in-block ids fall on ids Jin already uses; the eighth, $1C7, is unused inside that block. So her audio import is close to an in-place substitution: replace the sequences and samples behind those ids, rewrite Jin's row, done. The row is fixed size and lives in the code region, so it costs zero allocation.

That is not luck I can take credit for. It is a consequence of both games assigning id blocks in roster order, and Storm and Jin happening to sit at compatible positions. But it does mean Storm cannot leak another character's voice by construction — which, as the Magneto post now documents at length, is not a hypothetical failure mode.

Resolving every id through the sequence → instrument → descriptor → PCM chain gives the sizes: Storm needs 97,516 bytes of sample data; removing Jin frees 297,988 bytes of PCM that no other character and no music cue references, and there are 66,126 more bytes of trailing padding behind that.

Animation: the parser reads both games unchanged

The biggest unknown in any cross-game character import is whether the animation structures are the same shape. That is answerable without building anything: run one parser over both games and see where it stops agreeing.

The MvC walker — 16-byte records, spritelist pointer at +4, bit 15 of +2 as the jump flag — parses all 19 XvSF trees and 22 of 23 MvC trees, with mode-2 spritelists over 99% dominant in both. The port is relocate-and-translate, not rewrite.

There is one real delta. Every MvC character has 31–33 top-level animation groups; every XvSF character has 28. Aligning the five characters that exist in both games (Ryu, Chun-Li, Zangief, Gambit, Wolverine) by group shape and letting them vote gives a map that is unanimous where it matters:

• MvC groups 0–21 ↔ XvSF 0–21, one-to-one, 5/5 agreement on every single one
• groups 22–25 match at 4/5
• MvC 26, 27, 28 have no XvSF source — the extras
• MvC 29, 30 ↔ XvSF 26, 27

So 28 of 31 groups translate by index and three are decisions. Storm's tree itself is 26,576 bytes against Jin's 24,498 — a 2,078-byte excess against 110,998 bytes of headroom.

The honest caveat: shape agreement is evidence of order, not of meaning. Five characters agreeing that group 7 lines up says the containers match; it does not prove group 7 does the same job in both engines. That needs one behavioural confirmation before phase 5 leans on it.

What the measurement pass also caught

Two things surfaced that would have been ugly to discover later.

A boot ROM checksum nobody had noticed. MvC's boot code at $000236 samples one byte every $FFF across all eight 512 KiB banks and sums them, and the expected values are stored in the ROM at $0000D0 — parked in the unused 68000 exception-vector area. They match the canonical image exactly. Sixty-three of those sample points fall inside the free space this build intends to spend, so recomputing and rewriting that table is now a mandatory build step rather than a surprise in the service menu.

A 256-byte "free" run that is not free. Of eight all-0xFF runs in the program image, seven are genuinely unreferenced. The eighth, $3B1100–$3B1200, is the allocated but empty record for Onslaught in a live per-character table. Claiming it would have been a silent corruption. It is excluded, and the supply is 244,398 bytes against a 133,400-byte requirement.

The ledger says no, and that is the point

All of this feeds one artifact — stock_allocation_ledger_v1.json — where every number is read out of a receipt file rather than typed, and each line carries demand, supply, headroom and a status. It ships with a validator that exits non-zero when the ROM is not buildable, so later phases gate on an exit code instead of on prose.

line                       demand       supply     headroom  status
code                            —       15,514            —  CLOSED
program_data              133,400      244,398     +110,998  CLOSED_PENDING_PROOF
gfx_bank3_storm            12,329       12,873         +544  CLOSED
gfx_bank0_magneto          14,789       13,294       -1,495  OPEN
qsound_pcm                222,235      501,325     +279,090  CLOSED

The first time I ran the validator it caught me: program_data was marked CLOSED while still carrying an outstanding proof obligation. Numbers working is not the same as evidence landing, so there is now a CLOSED_PENDING_PROOF state and the status derivation respects it.

Storm's line is closed. Magneto's graphics line is open by 1,495 slots, with 2,075 candidate slots identified and one proof outstanding before they can be claimed. The ledger reports OPEN and refuses ready_to_build, which is the correct answer today.

What proves it, when it is built

The acceptance instrument is not a wishlist. It is 240 combo cases extracted from twelve ALLTIME-BEST xmvsfu matches — real elite play, calibrated against FBNeo's own input decode, with 113 of the cases containing a super. Each case carries per-frame stick and button state and is played back into MvC through its own controls, so the port gets exercised by what top players actually did rather than by anything I would have thought to script.

Storm is not built. Nothing is written. But every question that could have stopped her has been asked and answered with a number, and the one that is still open belongs to somebody else.

Storm's select-screen contract, measured live

The whole article above is a measurement pass for Storm the resource consumer — tiles, PCM, tree bytes. This closing section, added August 15, applies the same rule to Storm the select-screen citizen: measure the object model first, then let a fail-closed harness bind every field of it, every frame, on the record.

Eight records, a loop, and a sentinel

The select repair gave Storm a private SELECT chain at $5BF2B0 — the same structure as Magneto's 73-record chain, scaled to her eight frames at a 6-frame hold:

One actor, two jobs — and how the harness tells them apart

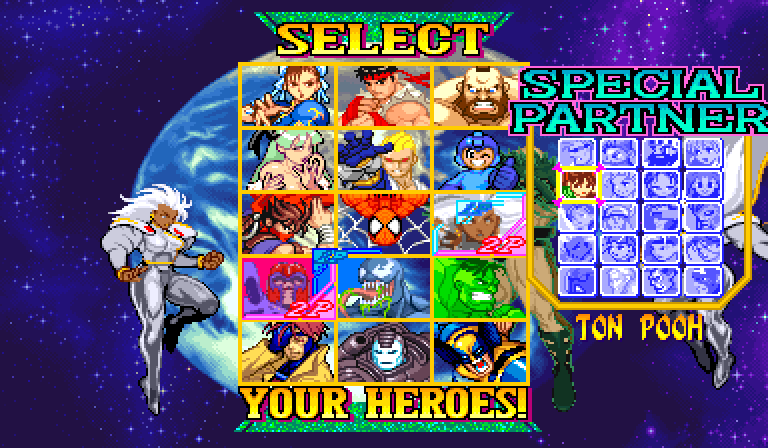

The subtle part of Storm's select presence is not the bench side; it is the left grid actor — a single class-$54/subtype-$06 work object ($FF5DEA in the measured runs) that multiplexes two jobs. Before a commitment it plays the montage: cycling native characters using their stock catalogue records. After P1 locks Storm, the same object pins to her private chain and stays there. The unfiltered observation census caught it mid-switch, and the two roles are byte-distinguishable:

So the acceptance oracle does not ask "does the left panel show Storm" — a montage frame could. It requires the actor's live record to be a member of the pinned private chain with r32(record+4) equal to the pinned cel, the full field vector to hold (side $00, slot $00, flip $01, bank $08, palette $0C, state $0002, FSM word zero), the same work address to persist across the window, and at least two distinct chain cels to render-bind — animation proven, not asserted. A montage can satisfy none of that for more than a few frames; her chain satisfies all of it for as long as the window runs.

The window that had never run

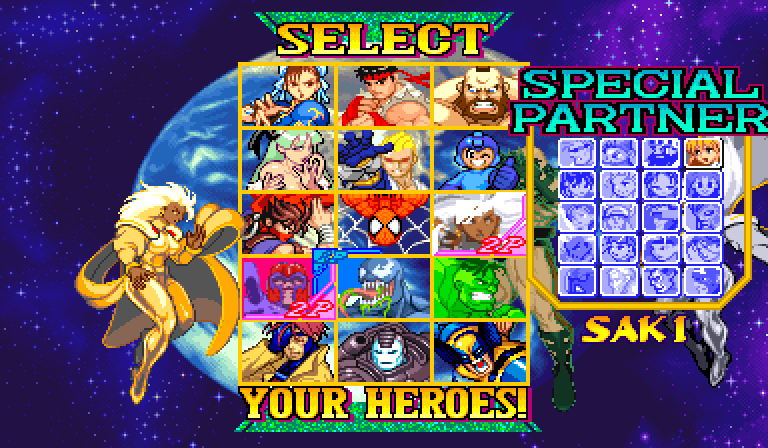

Until August 15 no attempt had ever reached Storm's committed-body checkpoint — every earlier version failed before both selectors finished choosing. That run got there, and the gate passed on its own terms. The unedited ledger, one row per window frame, verdict withheld until the last one:

age 0  record=$5BF2D0 idx 4 cel=$5150E8 render_bound=true  distinct_cels=0  ← present, first frame
age 1  record=$5BF2D0 idx 4 cel=$5150E8 render_bound=true  distinct_cels=1
age 3  record=$5BF2D0 idx 4 cel=$5150E8 render_bound=true  distinct_cels=1
age 4  record=$5BF2D8 idx 5 cel=$515112 render_bound=false distinct_cels=1  ← chain advanced (6-frame hold)
age 5  record=$5BF2D8 idx 5 cel=$515112 render_bound=false distinct_cels=2
age 6  record=$5BF2D8 idx 5 cel=$515112 render_bound=true  distinct_cels=2  ← LATCH: owner pass

Every field of the measured contract held on every one of those frames: side $00, slot $00, flip $01, bank $08, palette $0C (and palette delta $0C — the rendered submission's own palette row, recovered by inverting the renderer transform), state $0002, FSM word zero, anchor ($00B8,$0010), the same work address $FF5DEA throughout, and a record that is a member of her pinned private chain with a live r32(record+4) equal to the pinned cel. Six frames of held contract, two chain cels rendered, one unique owner, one unique coherent OBJ run.

Her point-dwell gates passed in the same run with the same contract — rendered actor and chain work resolving to the same cel at all three checkpoints ($515000, $51509C, $515000), with two distinct cels across them, so her idle is proven to move, not merely to exist.

The run as a whole still sealed FAIL, and none of it was hers: the sampler collapsed Magneto's three point-dwell captures onto consecutive frames, a defer budget came up one frame short of a portrait zoom, and a global end-of-selection gate turned out to have an unreachable precondition. All three are scheduling faults in the instrument, all three are measured in the seal, and the successor changes only those. The full apparatus and revision history live in his post →

The preprint apparatus, shared with his post

The full acceptance program — revision history v8 through v11, the fail-closed pipeline (freeze → two byte-identical preflights → independent review → single launch → seal), the per-frame pre-verdict vector ledger, and the hash-pinned artifact list — is documented once, in the closing section of the Magneto article. Storm's constants ride the same instrument: her chain, cels, contract fields and the shared routers are re-derived from the staged candidate on every preflight, the pins must be byte-identical twice on the operator's machine and once more in an independent cloud re-derivation, and every run seals — pass or fail — with hashes. The measurement pass this article opened with now runs all the way to the select screen; the receipts, not this prose, say when she is done.
