I Found the Perfect Table for Storm's Portrait. The Game Never Read It.

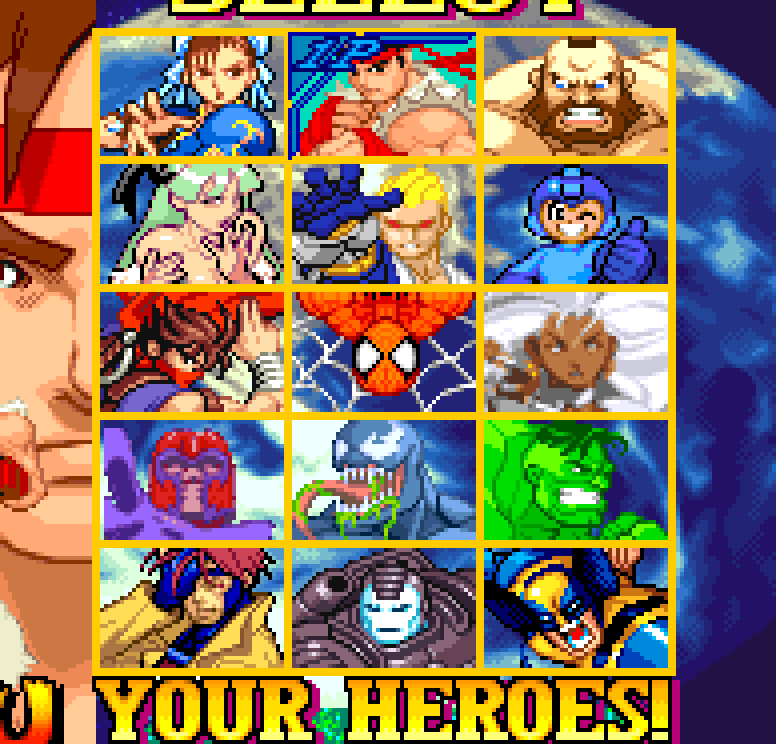

Storm from X-Men vs. Street Fighter is standing in Marvel vs. Capcom. She has her own art, her own animation tree, and — statically — her own voice. She is sitting in Jin Saotome's chair at id $18, third row, third column, Down Down Right from Ryu.

And the table this project spent a whole session preparing to patch — the roster-indexed table with exactly the right shape, exactly the right record size, and a fingerprint so clean it explained a documented quirk of the game — is never read at the character select screen. Not once. Not in either address space. Not on either of two independent runs.

I know that because the same capture that reported zero reads on the table reported sixteen reads on a control address in the same window, from the same tap machinery, in the same run.

Skip to what you came for

• Act 1 — seating a character inside another one — the tile rule, the bank selector, the directories. Pure hex.
• Act 2 — the audio import — the id-block collision that is not a collision, and the samples that were already in the ROM.
• Act 3 — the reversal — the tap, the control, and what actually draws the grid. This is the part to read if you only read one part.
• Act 4 — the icon is drawn — flip bits, the palette base, and the transparent pen. The part with the pictures.
• Act 5 — making it a ROM patch — 76 bytes of program ROM, listed. The part you can apply yourself.
• Act 6 — what a whole character costs — 30 KB and four pointers, plus two wrong answers and the control that killed both.
• Landmines — nine things that will eat your evening.
• The number I do not trust — a 20x disagreement, stated honestly.
• Reproduce it — exact commands.

"status": "STATIC PASS ONLY. Jin remains the dispatcher; this is an
           inspection baseline, not a Storm move-logic claim."

Act 1: seating a character inside another one

The expanded build maps an extra program member, mvc.exp, at CPU $500000. Storm's imported data occupies $508000..$523006. Magneto — the first import, from an earlier session — starts at $588000 and is untouched by this work.

The tile rule is one line

This is the piece that makes a cross-game graphics import tractable, and it is worth stating on its own because it removes an entire class of work:

A CPS-2 character's tile codes are 16 bits plus a per-character bank byte. If your import lands inside one bank, every code in every spritelist stays literally the same and you are only moving pixels. If it straddles two banks, you are rewriting every reference. Check this before you plan anything else.

Storm's seat:

The upper-bank selector, and the off-by-one that looks like a wrong table

Each character's bank is selected by a byte in a directory word table:

upper-bank selector:  DIR_WORD + id + 1     value = bank x 2

  Magneto  id $04  ->  $0C   (bank 6, even H chips)
  Storm    id $18  ->  $08   (bank 4, odd  H chips)

The + 1 is real and it is the most common way to lose an hour here. So is the endianness:

The five per-character directories

These are the pointers that make a character a character. Write them down once; you will use them in every phase.

Jin's box-shape window is $3A6000; Captain America's is $3A1000. Storm's import overwrites Jin's window in place, which is why the manifest carries jin_boxshape_sha256 and a recovery note: rebuild from the immutable base zip.

Storm's source pointers on the XMvSF side, for anyone doing the same import:

The palette directory that eats builders

Two builders in this project read the wrong table and produced wrong colours — including Magneto's second palette, which took a while to attribute because "the second palette is wrong" sounds like an alternate-costume bug rather than a directory bug.

192 bytes per character: 3 base lines, 3 alternate lines at +$60. Both games' copy loops are the same shape — 24 longwords, with lea $60(a0),a0 for the alternate.

And one thing you must not forget on a stock-layout build

MvC's boot code at $000236 samples one byte every $FFF across eight banks and sums them. The expected sums are stored at $0000D0, parked in the unused 68000 exception-vector area. Any stock-layout build has to recompute them. (The expanded build sidesteps this; the stock-layout track does not.)

Act 2: the audio import, and the collision that was not one

Every CPS-2 fighter gives each character a contiguous block of 32 sound-command ids and a fixed row that maps animation slots to them. The dispatch is short enough to read in one sitting:

; MvC sound-post routine
$0D5EF0  movem.l d0-d3/a0-a1,-(a7)
$0D5EF4  move.w  $52(a6),d2          ; character id
$0D5EFE  move.w  $d5f30(pc,d2.w),d2  ; 23-entry offset table
$0D5F02  lea.l   $d5f30(pc,d2.w),a0  ; -> this character's sound ROW
$0D5F10  add.w   d1,d1 / add.w d1,d1 ; animation slot * 4
$0D5F20  move.w  (a0,d1.w),d1        ; slot -> sound action id
$0D5F24  beq.b   $d5f2a              ; 0 = silent slot
$0D5F26  bsr.w   $d5a7e              ; post it

Now the part that sounds like a disaster and is the opposite of one.

Storm's id block in XMvSF is $1C0–$1DF. Jin's id block in MvC is also $1C0–$1DF.

Row geometry: the off-by-one is structural, not accidental

The two games' rows are different lengths, and the difference is a header:

Every MvC row has that header pair and no XMvSF row does. So the copy is not slot-for-slot, it is:

ROW_SLOT_SHIFT = 1                # MvC slot i+1 <- XMvSF slot i
XV_ROW_ADDR,  XV_ROW_LEN  = 0x079580, 0x7C   # 31 slot pairs, no leading pair
MVC_ROW_ADDR, MVC_ROW_LEN = 0x0D660C, 0x80   # 32 slot pairs, pair 0 is a header

The row rewrite is 128 bytes at $0D660C, and because the row lives in the code region it costs zero allocation.

PCM into a zero tail: no reclaim, one hard rule

mvc.h12m — the sample expansion the build already carries — ends in a 150,906-byte run of zeros starting at QSound address $FDB286. Storm's clips need 97,516 bytes. So the whole placement problem is "put 97,516 into 150,906," and the answer is not "pack them end to end."

A placed descriptor, decoded, so you can recognise the format in your own ROM:

descriptor index $34C   record: fe 00 00 07 50 fe 7f 3c
  bank  $FE
  start $0000
  loop  $5007
  end   $7FFE
  rate  $3C
  -> QSound address $FE0000, 32,767 bytes

New descriptors are written at fresh indices past MvC's live table (indices 0..817 are live; 818's record is already past the end), and each record is proven all-zero and unreferenced before it is written.

The instrument re-encode: 8 bytes in, 4 bytes out

The two games do not store note records the same way, and this is a genuine format translation rather than a copy:

XMvSF note record (8 bytes):  [desc:LE16][00][a][d][s][r][00]
MvC   note record (4 bytes):  [desc:LE16][00][$20]
                                              ^ indexes the envelope
                                                preset table at $8000

That $20 was derived, not assumed — it was read off the 13 PCM clips that are byte-identical in both games, which is the kind of cross-game invariant that turns a guess into a measurement.

The two source instruments Storm's sequences reference (1 and 5) use disjoint note numbers, so they merge into one new MvC instrument with the note numbers unchanged:

The relevant table bases, if you want to walk this yourself:

MVC_SEQ_TBL   = 0x9006   # id -> 24-bit BE linear + flag byte
MVC_INST_TBL  = 0x3B04   # instrument -> LE16 pointer into mvc.01
MVC_DESC_BASE = 0x5000   # descriptor index -> 8-byte record
MVC_ENV_TABLE = 0x8000   # note-record byte 3 indexes this table
MVC_HEADER    = 0x3B00   # (sequence, descriptor, instrument) bases
MVC_N_IDS     = 0x332

XV_SEQ_TBL    = 0x9006
XV_INST_TBL   = 0x4004
XV_DESC_BASE  = 0x54F6
XV_HEADER     = 0x4000   # expect bytes 0090f6542e40

Sequences are copied verbatim except for the 1F nn instrument selector, and MvC's $9006 table is repointed at the copies:

The finding buried in the receipts: two of these samples are already in the ROM

Five of Storm's ids sit outside her block — $147 $148 $149 $14A and $16C — and four of them would play another character's sample. That is not a byte move, it is a listening call, so the builder holds those four row slots byte-identical to the base and waits.

Then the receipt generator did something worth stealing: before writing anything, it hashed every clip it was about to import and searched the destination ROM for those exact bytes.

Three more clips in the import set turn out to be already present too — at QSound $018000 (descriptor $00A, id $15F), $058000 (descriptor $01A, id $184), and $A30000 (descriptor null, unreferenced). Hashing your import set against the destination before you write is about ten lines of Python and it can delete most of your work.

The gate, and what it does and does not say

gate rule: every id reachable from the rewritten row must resolve to a Storm
           clip or an audited equivalent, and no id outside $1C0-$1DF may be
           reachable without an entry in the translation list

verdict: PASS
reachable ids: $121 $16C $1C4 $1C5 $1C6 $1C7 $1C9 $1DA $1DB $1DC $1DE
reachable out of block: $121 $16C   (both in the translation list)

Five members changed, thirty-one are byte-identical:

Act 3: the table that was never read

Here is the setup, written the way I believed it going in.

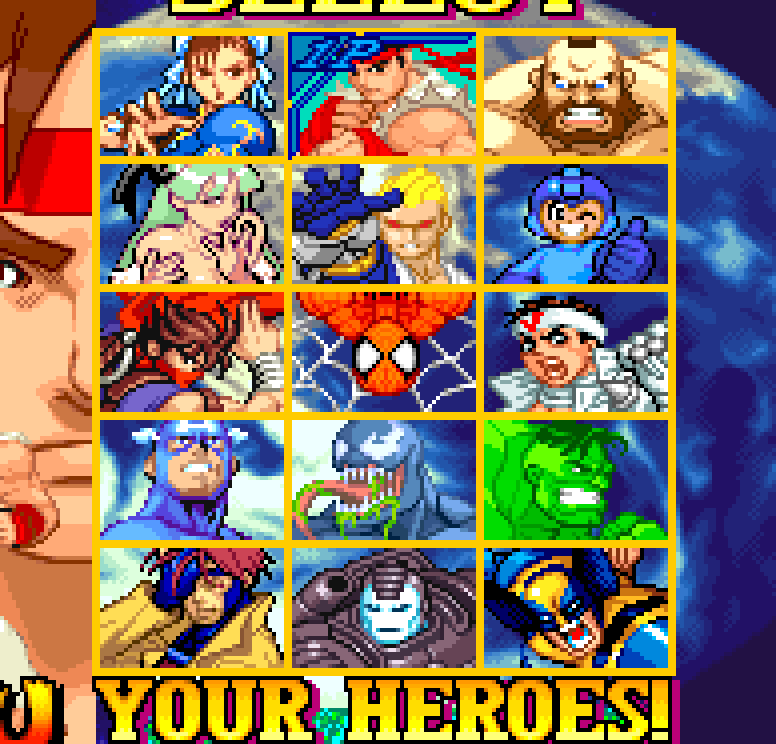

At this point in the work, both characters still showed the donor's face in the 3x5 select grid. The identity builder already handled the HUD name, the 32x32 HUD portrait at $006AA6 + row x 2, the SELECT montage, the wordmark and what I then believed was the select palette at $1D2A84 + row x 32. It did not touch the grid icon.

And there were two roster-indexed u32 tables with exactly the right shape:

$1810F2   row 2 -> $1815E6   row 12 -> $18165E
$18296A   row 2 -> $1829D2   row 12 -> $182A4A

12-byte record:  0000 FFFF <u32 ptr into $33xxxx/$34xxxx> 0018 <own low word>

They had a fingerprint, and the fingerprint was beautiful:

The capture, and the control that makes it mean something

Here is the tap code, close to verbatim, because the shape matters more than the addresses:

local TAPS = {
  -- the two candidate structures (pointer tables + record arrays)
  { tag = 'PT_A',  base = 0x1810F2, len = 4 * 24,  stride = 4  },
  { tag = 'REC_A', base = 0x1815CE, len = 12 * 24, stride = 12 },
  { tag = 'PT_B',  base = 0x18296A, len = 4 * 24,  stride = 4  },
  { tag = 'REC_B', base = 0x1829BA, len = 12 * 24, stride = 12 },
  -- positive controls
  { tag = 'CTL_BOOTSRC', base = 0x000E62, len = 0x80,      stride = 0x80 },
  { tag = 'CTL_SELPAL',  base = 0x1D2A84, len = 32 * 16,   stride = 32   },
  { tag = 'CTL_HUDPORT', base = 0x006AA6, len = 0x40,      stride = 2    },
}

_G._cap_taps = {}                     -- park handles in _G, see Landmines
local function arm(space, spname)
  for _, r in ipairs(TAPS) do
    local key = r.tag .. (spname == 'program' and '' or ('~' .. spname))
    local ok, t = pcall(function()
      return space:install_read_tap(r.base, r.base + r.len - 1, 'c' .. key,
        function(offset, data, mask)
          local slot = math.floor((offset - r.base) / r.stride)
          counts[key][slot] = (counts[key][slot] or 0) + 1
          if not first[key][slot] then first[key][slot] = frame end
          return data
        end)
    end)
    if ok then _G._cap_taps[#_G._cap_taps + 1] = t end
  end
end
arm(prog, 'program')
if ops then arm(ops, 'opcodes') end

The result

The log is blunt about it. Fifteen consecutive measurement windows spanning entry, both picks and 2,940 frames past selection:

[select-detected f=533]
[win f=653  ph=0004 cur=12 hov=0012] entry burst
   CTL_SELPAL{15:16}
[win f=772  ph=0004 cur=12 hov=0012] baseline hover
   (no reads in window)
[act f=773] pick#1 (hovered)
[win f=892  ph=0004 cur=12 hov=0014] after pick#1
   (no reads in window)
[act f=893] move right
[win f=1012 ph=0004 cur=12 hov=0020] after move-right
   (no reads in window)
...
=== TOTALS (key slot:count@first) ===
CTL_BOOTSRC~opcodes 0:59@93
CTL_SELPAL          15:16@558

Two independent runs. Both address spaces. The control fires; the candidates never do.

So what actually draws it

The 3x5 grid is not sprites and it is not a roster-indexed pointer table. It is a scroll1 (8x8 tile) tilemap, built into CPS gfxram at $908000.

Read linearly with a 32-entry stride the block appears transposed, because CPS scroll1 addressing is column-major:

tilemap index = (row & 0x1F) + ((col & 0x3F) << 5) + ((row & 0x20) << 6)

A naive index = ty*32 + tx walk therefore yields row = tx, col = ty. Undo that and the geometry falls out exactly:

That +1 / +$12 stride is the real finding inside the finding: the entire grid is one contiguous tile sheet 18 tiles wide. The cells are windows onto it, not independent objects.

You can see it directly in the dumped tilemap — each row of the sheet advances by $12, and consecutive columns advance by 1, with the attribute word's low byte carrying the palette:

y06  409B(0008) 40A2(0008) 322D(0068) 40C4(0008) 40D6(0008) 40E9(0009) ...
y07  409B(0008) 40A4(0008) 40B4(0008) 40C6(0008) 40D8(0008) 40EB(0009) ...
y08  409B(0008) 40A6(0008) 40B6(0008) 40C8(0008) 40DA(0008) 40ED(0009) ...
     ^ code(attr) — attr low byte is the cell palette

The ROM source blob for this tilemap is at $25EE90, found by searching the ROM for the live codes.

The live cell map, measured by driving the cursor

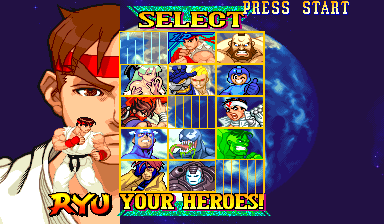

This was not inferred from a table. A Lua script snakes the cursor through all 15 cells, and at each settle reads the hovered character id from RAM plus the P1 cursor's pixel position — found by scanning OBJ RAM at $708000 for the cursor's palette-10 corner pieces.

Cursor pixel positions: x = 184, 232, 280 and y = 48, 80, 112, 144, 176.

* col 0 / row 0 was the snake's start cell and never re-entered. $16 is the only base-roster id unaccounted for after the other fourteen were observed directly.

Per-cell palette, from the tilemap attribute low byte:

Why this is much better news than the original plan

The original plan was "seat icon art somewhere new, then repoint rows 2 and 12 of a 12-byte-record table." That plan cannot work, because there is no such table in this path. What replaces it is strictly smaller:

At this stage, changing Storm's icon looked like overwriting 24 tiles of pixel data in the GFX ROMs and, optionally, the cell's palette line at $0B: a pure GFX-ROM edit. Act 5 records why that was only the prototype answer and how the permanent patch also owns eight tilemap entries and two palette rows. The useful result survived the correction: no pointer table or new code is required.

Act 4: the icon is drawn, and three hardware rules I did not know

Act 3 ended with "a pure GFX-ROM edit." That was the prototype conclusion, and it was not enough. Writing 24 tiles of Storm into the cell produced an icon that was recognisably Storm and visibly wrong: a square missing from the top-right corner, gold grid lines running through her face, and Magneto with both side columns gone.

Three separate bugs. Each one is a rule of the hardware that is invisible until it bites you.

4.1 The stock ROM reuses one corner tile by flipping it

Dump the tilemap entries for both cells at select time — code then attr:

STORM cell, screen (216,96)            MAGNETO cell, screen (120,128)
4135/0B 4136/0B 4137/0B 4138/0B        40A8/01 4171/01 4172/01 4173/01
        010D/6B 4139/0B                        4174/01 40A8/21
4147/0B 4148/0B 4149/0B 414A/0B        04E1/61 417F/01 4180/01 4181/01
        414B/0B 414C/0B                        4182/01 04E1/01
4159/0B 415A/0B 415B/0B 415C/0B        04E1/61 418C/01 418D/01 418E/01
        415D/0B 415E/0B                        418F/01 04E1/01
416B/0B 416C/0B 416D/0B 416E/0B        419A/01 419B/01 419C/01 419D/01
        416F/0B 4170/0B                        419E/01 40A8/61

Twenty-two of Storm's twenty-four tiles are unique codes with attr $0B. One is not: code 010D with attr $6B. Magneto has seven: 40A8 three times and 04E1 four times, with attrs $01, $21 and $61.

Those are shared decoration tiles — the gold cell frame. And the attr byte is not just a palette index:

/* MAME, cps1.cpp — the scroll1 tile callback */
tileinfo.set(0, code, attr & 0x1f, TILE_FLIPYX((attr & 0x60) >> 5));
/*                    ^ palette                  ^ $20 = X flip, $40 = Y flip */

The ROM draws one corner tile and gets all four corners by flipping it. $6B is palette $0B plus X flip plus Y flip.

So when I repointed those shared tiles to private codes — correctly, so that writing art into a corner would not corrupt every other cell that borrows the same tile — and wrote un-flipped art into them, the hardware dutifully mirrored my art.

rows  1-7   #.......................................#......o
rows  8-23  o......#.......................................#
row    24   #.......................................########
row    31   #########################################ooooooo

The fix is two bytes per entry instead of one — write the attr as well as the code, with the flip bits cleared:

4.2 Finding the palette base, after retracting the first answer

Earlier in this project I wrote 16-colour palettes to $1D2A84 + row*32 and the colours came out badly wrong. That claim was retracted. Here is the replacement, and how it was found.

Take a select-time dump of gfxram ($900000-$92FFFF), and brute-force every 32-byte-aligned window in it against the colours a cell actually displays, which were already calibrated by writing known pixel values and reading back the screen:

def dec(w):                                  # CPS palette word -> RGB
    br = 0x10 + ((w >> 12) & 0xF)            # BRGB: brightness, R, G, B
    return tuple(((w >> s) & 0xF) * 0x11 * br // 0x1F for s in (8, 4, 0))

for off in range(0, len(gfxram) - 32, 32):
    pal = {dec(u16be(gfxram, off + 2*i)) for i in range(16)}
    score = len(pal & cell_colours)          # how many of the 16 match

Two hits, both 15/16:

Jin's cell  (palette $0B)  ->  gfxram offset 0x14560
Cap's cell  (palette $01)  ->  gfxram offset 0x14420

And they agree on a base, independently:

0x14560 - 0x0B*32 - 0x400 = 0x14000
0x14420 - 0x01*32 - 0x400 = 0x14000

Do not overwrite $0B and $01. Those palettes are shared. Scan every one of the 64x32 scroll1 tilemap entries for attr & 0x1F and you get the palettes actually in use on this screen:

in use:  0 1 2 3 4 5 6   8 9 A B C D E F
free:            7           10 ... 1F

Slots $1B-$1F hold five byte-identical grey ramps — obvious padding. Storm took $1E, Magneto took $1F. No stock cell changes colour, and the two icons stop fighting each other for someone else's fifteen colours.

4.3 Pen 15 is transparent, so you have fifteen colours

The first custom-palette build put the gold frame colour at index 15. The frame vanished — and the pixels came back as (34,34,119) and (221,255,221), which are not in any palette. They are the scrolling Earth in the background layer.

CPS scroll1 draws with pen $0F transparent. Which explains a detail that had been sitting unremarked in every palette dump:

pal 00  FFC0 FEDE ... F035 F000      <- last word $F000
pal 01  FFFF FBFF ... F111 F001      <- $F001
pal 0B  F000 FFC9 ... FF00 F00B      <- $F00B
pal 0F  F000 F5BF ... F731 F00F      <- $F00F

Every palette's sixteenth word encodes its own index. It is never rendered, so the game parks a signature there. The build does the same, partly out of respect and mostly because it makes a palette dump self-labelling.

4.4 The stock icons are cut-outs, and that changes everything

Build five looked right and was still wrong, in a way that took someone else noticing to see: "his background isn't transparent."

That is not a style note. Decode each stock cell's 15 renderable pens, then count screen pixels inside the cell whose colour is not one of them. Those pixels are pen 15, and what you are seeing through them is the layer behind:

Captain America's cell, opaque in white, transparent in blue:

So a painted background — which is what builds three through five produced — is the wrong construction, not a worse one. Two things follow immediately:

• A crop rectangle stops being the framing tool. Anything that is not the character is transparent, so the crop only has to contain him.
• The palette gets bigger. Excluding background pixels from the palette fit means all 15 pens go to the character instead of spending four or five on a backdrop nobody will ever see.

Cutting him out

The backdrop is two things: the XvSF hover panel's desaturated grey backing slab, and the starfield outside the panel. Take the union, then keep only what is reachable from the crop border:

slab  = ((mx - mn) < 40) & (mx > 80)
stars = (b > r + 40) & (b > g + 40) & (r < 70)   # r<70 spares Magneto's purple
bg    = flood_fill_from_border(slab | stars)

Border-connected is the whole trick. The same greys occur inside the character — nose highlight, eye whites, the specular on his hand — and a plain colour test punches holes straight through his face. The flood fill only takes backdrop that is actually behind him.

Placing by head size instead of by crop

Once the background is gone, framing becomes a placement problem: measure the head with a colour test, scale the whole silhouette so the head is a chosen height in cell pixels, and drop it at a chosen cell coordinate.

MAGNETO   window (76, 0, 182, 72)
          head    red test -> source bbox x100-139, y7-50
          head_h  20 cell px    at (23.5, 13.0)   [cell centre x is 23.5]

  measured back off the rendered frame: helmet 20 x 19, centred (23.5, 13.0)

The first attempt set head_h = 16, matching Captain America's ~15 px head, and produced a tiny Magneto floating in an empty cell. The mistake is instructive: Cap's cell is head and raised arm, so a 15 px head there implies a large figure. Magneto's hover art is head-plus-hand at a completely different zoom. Match the composition, not the measurement.

‹›

Before: flipped tiles, painted backgroundAfter: cut out, head placed

Storm keeps a painted background, on purpose

Her hair is white and the panel behind her is white cloud, so the border-connected grey test cannot separate them — it would eat her hair. A painted background is also legitimate here: Spider-Man's web and Hulk's green are painted too. Her crop widened from 84 to 114 px of source across the cell, which drops her face from roughly 30 to 22 cell pixels, and her crop centre and face centre are both source x = 100, so she stays centred.

Cutting her out properly needs a hand-drawn mask, not a colour test. That is an honest limit, not a finished job.

4.5 The verification, and one number that is not a defect

STORM    gold missing 0   gold extra 35   13 colours in cell
MAGNETO  gold missing 0   gold extra  0   15 colours in cell
new collateral outside the two cells: 0

Storm's 35 "extra gold" pixels are skin highlights that pass the gold colour test — they are inside her face, not on the frame. Magneto is exactly zero, which is the number that matters: his frame is byte-for-byte where the stock frame was.

Act 5: making it a ROM patch, 76 bytes you can type in by hand

The visual prototype up to this point used runtime pokes: a Lua script wrote tilemap entries and palettes at select+120. That proved the renderer and the art. This act replaces that prototype with ROM data, so nothing has to write the select screen at runtime.

Here is the whole thing as ROM data. 2,736 bytes across six files, of which only 76 are program ROM — the rest is pixels.

5.1 The palette table, corrected twice — and how the second one fooled me

$1D2A84 was retracted early in this project. Its replacement was found by searching the ROM for the colours a cell displays, which turned up three hits each, because palettes are stored as 12-bit 0RGB and the game ORs in the brightness nibble at upload:

pal $0B  ->  0x1BE71A   0x1C8A04   0x1D28A4
pal $01  ->  0x1BE5DA   0x1C8284   0x1D2764

Take the last pair. 0x1D28A4 - 0x1D2764 = 0x140 = 10 x 32, and $0B - $01 = 10. A clean 32-byte stride landing exactly where a palette table should. Infer the base at $1D2744, check the first 15 words of every palette $00-$0F, and get sixteen straight matches.

It was wrong. Patching there changed nothing on screen.

base $1BE5BA   00:Y 01:Y 02:Y 03:Y ... 1C:Y 1D:Y 1E:Y 1F:Y     32/32
base $1D2744   00:. 01:. 02:. 03:. ... 1C:. 1D:. 1E:. 1F:.      0/32

So: $1BE5BA + N*32, sixteen words of 0RGB, N from $00 to $1F.

5.2 The patch got smaller when each cell turned out to own its palette

Count tilemap references per palette on the select screen and you get fifteen palettes in use — $00-$06 and $08-$0F — for fifteen cells, with $07 spare. One palette per cell. Storm's cell owns $0B; Magneto's owns $01.

Which means they can be rewritten in place, with no palette repointing and no touching the palette bits of 48 attribute words.

The only tiles on those palettes that are not inside the cell are the adjacent gold border columns — codes $413A and $04E1, four tiles each. Sample them off the framebuffer and they use exactly one opaque pen:

x264-271, y96-127    gold (255,204,0) x 32, everything else transparent
x112-119, y128-159   gold (255,204,0) x 32, everything else transparent

So pin gold at the index the stock palette already uses — $0A in pal $0B, $07 in pal $01 — and those columns come out byte-identical while the other fourteen pens are yours.

That is the difference between a 48-word tilemap edit and an 8-word one.

5.3 Finding free tile codes: two tests that don't work

The eight shared decoration tiles still need private codes. Two obvious criteria both fail on this hardware:

What does work is structural. A code is free if no 4-byte-aligned position anywhere in the program ROM holds it as a code word followed by a plausible attr word (attr < $100, bit 7 clear). That is a test about tilemap entries, not about bytes, and it found $4D55-$4D61 — a run of thirteen. Eight were needed.

5.4 Locating 48 tilemap entries without decoding the block's layout

The select-grid tilemap source lives at $25EE94..$25F760 as plain (code, attr) pairs — but not in any scan order I could read off it. Row-major fails, column-major fails; it is chunked.

Rather than reverse it, invert the problem:

5.5 The eight tilemap edits, in full

This is the entire non-graphics, non-palette half of the hack. Word values, at 68000 addresses, in a plain data block — no code, no relocation, no free-space hunt:

$25F2A8  010D -> 4D55    $25F2AA  006B -> 000B    STORM (4,0)   X+Y flip
$25F328  40A8 -> 4D56                             MAG   (0,0)
$25F36C  40A8 -> 4D57    $25F36E  0021 -> 0001    MAG   (5,0)   X flip
$25F338  04E1 -> 4D58    $25F33A  0061 -> 0001    MAG   (0,1)   X+Y flip
$25F37C  04E1 -> 4D59                             MAG   (5,1)
$25F488  04E1 -> 4D5A    $25F48A  0061 -> 0001    MAG   (0,2)   X+Y flip
$25F4CC  04E1 -> 4D5B                             MAG   (5,2)
$25F4DC  40A8 -> 4D5C    $25F4DE  0061 -> 0001    MAG   (5,3)   X+Y flip

Remember the program ROMs are ROM_LOAD16_WORD_SWAP: byte A of the 68000 address space is byte A^1 of the file, so a big-endian word is stored low-byte-first. At file offset 0x5F2A8 you will see 0D 01 6B 00, and you write 55 4D 0B 00.

5.6 Proving it, which is the part that matters

A runtime poke only ever has to be right on one screen. A ROM patch has to be right everywhere — those eight new tile codes and two rewritten palettes could be used anywhere in the game.

And the acceptance test for the patch itself: boot it with a script that performs zero memory writes, and compare against the runtime build.

STORM    gold missing 0   extra 2   |  vs runtime build: identical
MAGNETO  gold missing 0   extra 0   |  vs runtime build: identical
border column (Storm side)  unchanged: True
border column (Magneto side) unchanged: True

Act 6: what a whole character actually costs, and the answer I got wrong twice

The icon is a face. The character behind it is a different question, and until this act the honest answer was "unknown, probably enormous." It is neither.

A full character port is about 30 KB of data copied anywhere free, plus four pointer words. No relocation pass, no fixups, no new code. Getting to that number meant being wrong twice in a row, and both wrong answers are more instructive than the right one.

6.1 The roster id is sitting in RAM at $FF40B1

Driving a select screen by counting frames is how three of my runs landed on the wrong character without saying so. There is no need: $FF40B1 holds the roster id of the character under the cursor. Park, read the byte, and you know exactly where you are.

Sweeping the grid gives the map:

            col 0        col 1        col 2
row 0      $16          $12 Ryu      $1A
row 1      $1E          $14          $20
row 2      $1C          $0E          $18   <- Jin  = STORM'S SEAT
row 3      $04          $0C          $06
row 4      $0A          $02          $08
             ^
             Captain America = MAGNETO'S SEAT

All ids are even, $02..$20. $10 is in range and belongs to no cell.

6.2 directory index = roster id / 2

Six tables sit contiguously at $0E676C..$0E6936, 23 entries each — 18 base characters plus 5 EX. A read tap at entry granularity, run through a match, lights up exactly one index per picked character:

cursor id $12  ->  heavy index  9      $12 / 2 =  9
cursor id $1A  ->  heavy index 13      $1A / 2 = 13
cursor id $1E  ->  heavy index 15      $1E / 2 = 15

Two of those three runs were cursor mis-drives — aimed at $18 and $04, landed elsewhere. That made the result stronger, not weaker: the cursor went somewhere unplanned three times and the index followed it every time. Which is only true because the script prints the id it actually reached. A mis-drive that prints nothing is a wrong answer wearing a lab coat.

Indices 18-22 alias 6, 3, 1, 11, 15 — the five EX characters pointing at their base character's data. Independently confirms two claims this project had made from unrelated work: $3A6000 is Jin's box-shape window, $3A1000 is Captain America's.

6.3 Is it code or data? The two live in different address spaces

This decides everything. If a character's block is 68000 code, a port is a translation. If it is interpreted data, a port is a copy.

A 68000 opcode fetch does not appear in a program read tap — the landmine from Act 3, now an instrument. Arm both spaces over the same range and the two answers separate cleanly:

range                          program reads    opcode fetches
OPS_CTL  $000000..$00FFFF          451,278        76,267,698   <- control
D1_ENT   $0E679C (the pointer)         792                 0
D1_BLK   $13EC82..$144C35            34,547                 0
D3_BOX   $3A6000..$3A67FF            23,914                 0

So: a character's blocks are interpreted data read by a shared engine. Nothing in them is executed. The reads are action-driven, as an offset table plus per-action scripts would be — idle 3,037, walk 16,648, jump 2,252, punch 1,390.

6.4 Wrong answer #1: "the blocks are full of absolute pointers"

The block head is a clean two-level offset table (first u16 = $003E = its own size, 31 entries). All block-relative. But the script records looked like they carried absolute 32-bit pointers back into the block:

+3850  00 04 00 14 24 94 00 00     $00142494 = this block + $3812

I counted them across all 23 blocks against controls and got what looked like a decisive result:

I published that, plus a second argument that felt airtight: each block's hits land in its own address range. Jin's need a high word of $0013/$0014, Captain America's need $0010. Surely coincidence would cluster at the same high words for every block?

6.5 Wrong answer #2, and the control that killed both

So I built a relocator: copy Jin's block to $3D0000, add the delta to every in-range u32, repoint D1[12]. It broke — Jin desynced from stock at frame 386. I diagnosed the overlapping-pointer resolution, fixed it, and it broke again.

At that point the reasonable-looking conclusion was "relocation is hard and needs a better pointer discriminator." Instead:

Jin  (idx 12)  D1 only, dest $3D0000, zero fixups   0 of 101 frames differ
Jin  (idx 12)  D1 only, dest $3F1000, zero fixups   0 of 101 frames differ
Jin  (idx 12)  D1+D3+D4+D5, 30,520 B relocated      0 of 101 frames differ
Cap. (idx  2)  D1+D3+D4+D5, 33,692 B relocated      0 of 101 frames differ
CONTROL        stock vs stock                       0 of  51 frames differ

The mechanism is worth carrying to your own project. Every D1 block base has a high word in $000F..$0017 — 15 to 23 in decimal. Those are exactly the values you find everywhere in animation data: frame counts, durations, timers. So two ordinary adjacent u16 fields read as one in-range "pointer":

+14E0  40 00 00 00 | 00 14 00 00 | 00 02 00 2F | 4A 04 90 03
                      ^^^^^^^^^^^
                      two u16 data fields -> $00140000, "inside" Jin's block

repeating every 16 bytes through whole regions of the block.

Both of my arguments collapse against that:

• "Each block's hits land in its own range" is circular. Every block needs a high word of 15-23 to produce an artifact, and all of those are common data values. The locality is produced by the mechanism, not by pointers.
• "The controls separate cleanly" was never apples-to-apples. Box shapes at $3A0000 and graphics at $300000 need high words $3A/$30 to fake a pointer, and those are far rarer as data than 15-23 are.

And the smoking gun, from logging block-relative read offsets on both ROMs so they are directly comparable:

[737] stock q=386 +14F4     reloc q=386 +14F4
[738] stock q=387 +257C     reloc q=386 +0030   <- reloc re-enters the head table

+$14E4 and +$14F4 are those 00 14 00 00 fields. Rewriting them to 00 3D 13 7E corrupted two data fields in every record of that run.

6.6 So: copy four blocks, write four pointers

                  Jin (idx 12)      Captain America (idx 2)
D1  scripts         24,500 B              26,664 B
D3  box shapes       2,048 B               2,048 B
D4                   1,378 B               1,714 B
D5                   2,594 B               3,266 B
                  ----------            ----------
                    30,520 B              33,692 B

pointer words   D1 $0E679C  D3 $0E6826  D4 $0E6882  D5 $0E68DE   (Storm's seat)
                D1 $0E6774  D3 $0E67FE  D4 $0E685A  D5 $0E68B6   (Magneto's seat)

D2 and T6 are u16 selectors, not pointers; they were never changed and a port that keeps the same shape of character does not need to touch them.

What is still unproven, and I would rather say it than have you find it: one input programme per character, so a move neither performs could still hide a dependency. The "~50 pointers into other characters' blocks" figure from the same flawed scan is retracted and unverified. And this is all stock mvsc — the expanded build was not used.

What that leaves for Storm is no longer a reverse-engineering problem. It is a data-authoring one: produce 30 KB in MvC1's script format. That is a different kind of hard, and a much more tractable one.

Landmines that cost real hours

Each of these has already bitten this project. They are listed with the symptom, because the symptom is what you will actually be staring at.

def tile_entry(x, y):
    col = (x - 72) // 8
    row = (y // 8 + 2) & 0x1F        # <-- the +2
    return 0x8000 + col * 0x80 + row * 4

The number I do not trust

The ledger says removing Jin frees 297,988 bytes of exclusive PCM (435,199 with Captain America). That figure is a per-id sum.

Recomputed as disjoint claimable ranges — every PCM range reachable from an id only Jin's row uses, minus every range reachable from any other character row or from any of the 531 system ids — it is:

Jin-exclusive PCM: 1 run, 14,429 B    0x07E0000..0x07E385D   (bank 126)

Both numbers deserve a caveat, and the caveats point in opposite directions:

• the budget's own method note says only the first note-on per channel is followed, so every character owns at least what was counted — which would make the range subtraction more aggressive, not less;
• some of the 531 system ids may resolve to descriptors that are not really live, which would make it less aggressive.

So 14,429 B is not a final answer either.

I am including this because a post full of confident hex is exactly the kind of post where a number nobody checked survives forever. This one got caught by noticing that two figures which should have matched did not, which is also how the boot checksum at $000236 and the icon-table reversal were found. Three of this project's more useful findings came from the same reflex.

What is left, and how to reproduce this

Still open

The select-grid edit is not on this list anymore. It is permanent ROM data and its verifier performs zero memory writes.

1. Hearing the audio. It is written and gated; it has not been played.
2. Storm's move logic — now a data-authoring job, not a reverse-engineering one. The engine reads interpreted scripts, the blocks are position-independent, and the four pointer words are known. What remains is producing ~30 KB in MvC1's script format. Her parked code at $510000 is unexplained by that result and may be the wrong shape for the job; check before building on it.
3. Reconciling the QSound ownership method above.

Build the ROM

cd "$ARCADE_RESEARCH_ROOT/CHARACTER_SELECT"
python3 scripts/build_storm_xmvsf_phase1.py    # md5 6ba1e1e6cd11fcd38ff4a06d9709a388

# Permanent select-grid-only patch; emits a ROM that needs no Lua writes.
python3 scripts/patch_rom_permanent.py --rom roms/mvsc.zip \
  --out build/select-grid-icons/mvsc.zip

MAGNETO_ROM="$PWD/roms/modified/mvsc_magneto_storm_phase1.zip" \
MAGNETO_MANIFEST="$PWD/analysis/storm_xmvsf/storm_phase1_manifest.json" \
bash experiments/magneto_xmvsf/run_magneto_xmvsf_direct.sh play

Storm is Jin's cell: row 2, column 2 — Down, Down, Right from Ryu.

Re-run the captures

# tap totals + positive controls -> the zero-reads result
mame mvsc -rompath roms -video none -sound none -nothrottle -skip_gameinfo \
  -autoboot_script cap4_master.lua

# cursor snake -> the 3x5 cell map
mame mvsc -rompath roms -video none -sound none -nothrottle -skip_gameinfo \
  -autoboot_script cap7_snake.lua

# gfxram / objram / wram dumps -> the tilemap itself
mame mvsc -rompath roms -video none -sound none -nothrottle -skip_gameinfo \
  -autoboot_script cap6_video.lua

cap6_video.lua writes gfxram.bin ($900000 +$30000), objram.bin ($708000 +$2000) and wram.bin ($FF0000 +$10000). The tilemap you want starts at $908000 — offset $8000 into gfxram.bin.

Every address in this post, in one table

Storm is standing in Marvel vs. Capcom with her own art, her own animation, and now her own face in the select grid. She moves like Jin and she has not been heard. Both of those are named, bounded pieces of work with an address attached.

The part worth carrying away is not any single number. It is that the best-looking hypothesis in this project — a table with the right shape, the right size, and a fingerprint that explained a real quirk of the game — was killed in ninety seconds by a tap with a control on it. The tap was cheap. Believing the fingerprint would have cost a session, and the session after that would have started by wondering why the repoint did nothing.

Put a positive control on your probe. It is the only thing that turns nothing happened into I measured nothing happening.
