The American arcade version of Marvel Super Heroes vs. Street Fighter has a hole in its character select. Bottom row, middle cell, where every other box holds a fighter's face, there is the game's own logo instead.
In Japan that cell is Norimaro — a gangly office worker in a purple suit, a comedian's creation, the least likely fighter in a game about Hulk and Akuma. He was cut everywhere else.
He is still in the American ROM. All of him. And the difference between the logo and a fully playable Norimaro is one byte.
The screen has no grid
The obvious model for a character select is a two-dimensional array and a cursor with a row and a column. That is not what this game does. There is no row and no column stored anywhere.
Movement is a link table: four words per character, giving the id you land on for up, down, left and right. The geometry is emergent. An entry that points at itself is a wall.
a0 = flag ? TABLE_A : TABLE_B
d5 = stored_value * 4 ; the stored value is the id doubled
a0 += d5
btst #3 -> d5 = (a0) ; UP
btst #2 -> d5 = 2(a0) ; DOWN
btst #1 -> d5 = 4(a0) ; LEFT
btst #0 -> d5 = 6(a0) ; RIGHTWalking that table from Ryu reconstructs a six-by-three grid with zero coordinate conflicts, and it matches the portraits on screen cell for cell. That agreement is the evidence the grid view is legitimate at all — a link table is perfectly capable of describing something non-planar, and if it had, no row-and-column picture would have been honest.
The two tables differ in exactly three entries, and all three are edges that touch the missing cell. Wolverine's DOWN, Omega Red's LEFT, Blackheart's RIGHT. In the American table they route around the hole. In the other they route into it.
Following the switch backwards

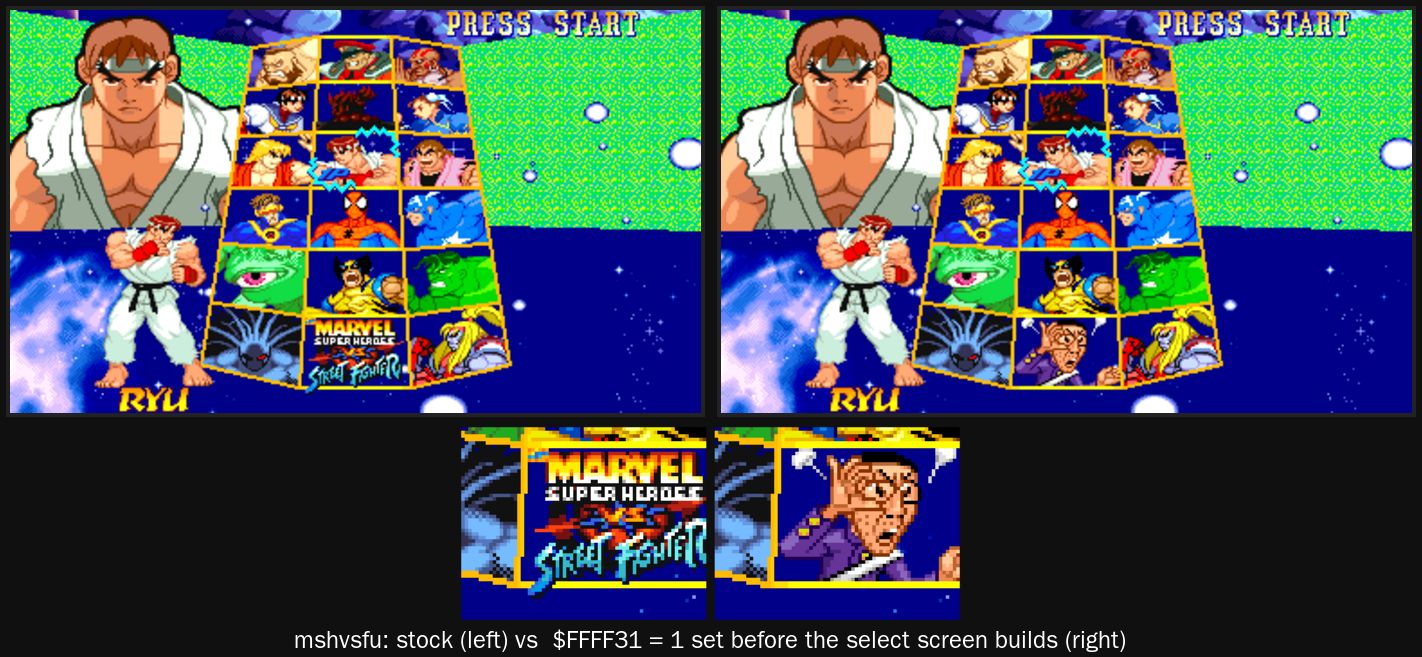

The table choice is a single byte in work RAM, and the same byte also picks which artwork the bottom-centre cell draws. That is why the first attempt produced a half-result worth keeping: the character became selectable while the box still showed the logo. The cell artwork is chosen once, when the screen is built, and the byte had been set after that moment.

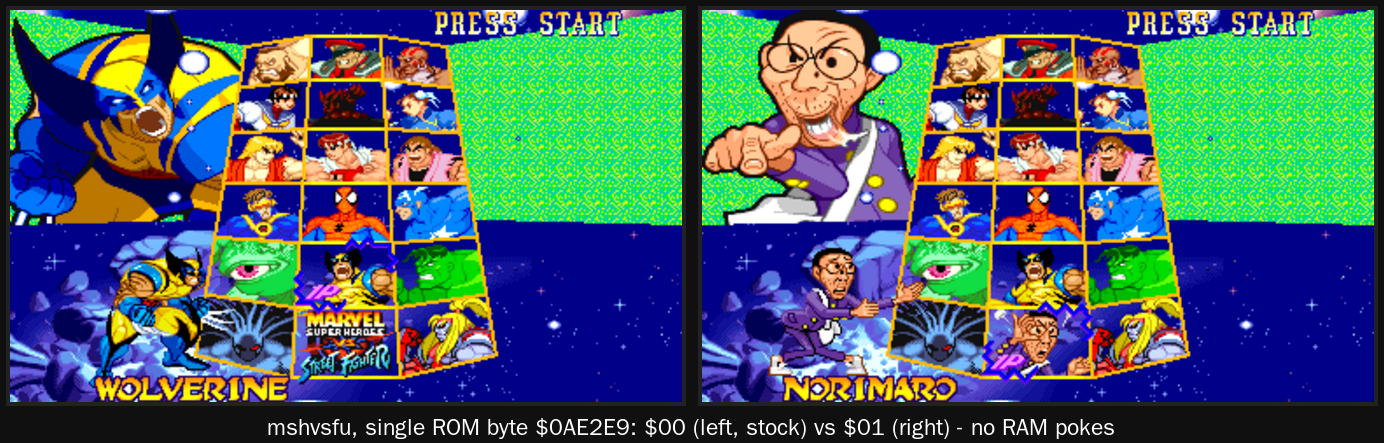

Tracing that byte backwards through the code that writes it leads out of RAM and into a defaults
table in ROM — one that carries readable region tags, MSHVSJPN and MSHVSUSA, alongside build
dates. The byte the running American ROM reads is $00. Making it $01 lets the game's own
configuration path do everything else: the flag gets set, the navigation table switches, the cell
artwork switches, and the tile data the artwork points at gets loaded.
No code patch. Nothing inside the encrypted region. One data byte.
He is playable, not just clickable

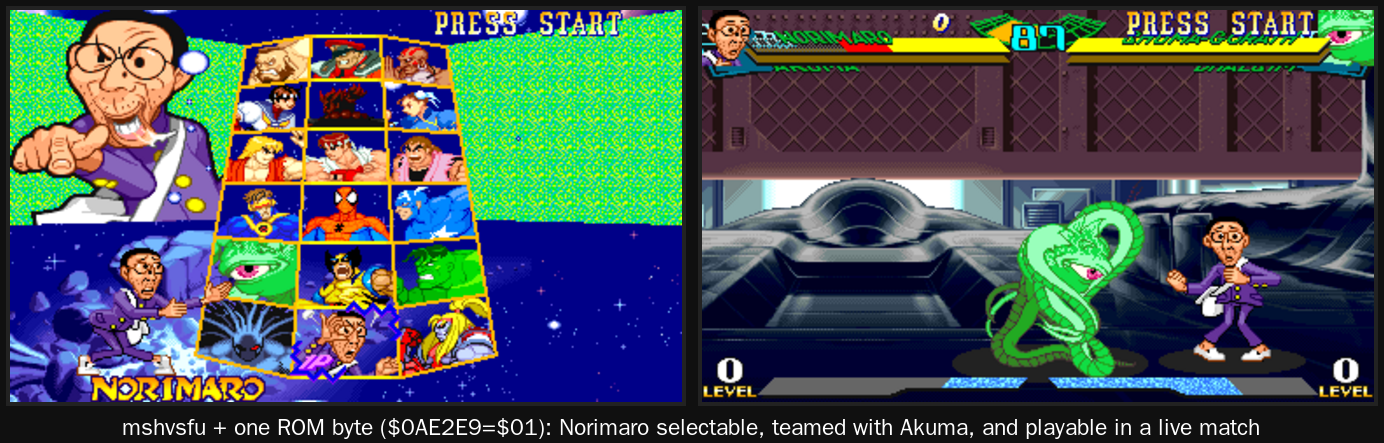

A selectable character that falls over the moment you pick him would be a curiosity. So the last check was to play him.
Select, confirm, pick a partner, mode, speed, stage load, match. Correct sprites and animation, a working health bar with his name and face, the round timer counting down, damage going both ways. Capcom shipped the entire character and declined to route the cursor to him.
Two wrong answers on the way
Both are worth more than the result.
The first was an instrument that never fired. A memory watch on a single odd byte reports zero writes in this emulator — silently, with no error. That produced a completely confident and completely false "nothing ever writes this flag". The fix is to watch the containing word and read which half changed. Every watch after that carried a positive control: a deliberate write at a known moment that must appear in the log, or the log is not evidence.
The second was a hypothesis that fit. A global byte is compared against five, and "press something at least once every five frames" is an elegant reading of that. It is also wrong: that address is referenced from 158 separate places in the binary. It is a shared base, not a press timer. What killed the idea was counting the references, not reasoning about the code.
There is a pattern in both. The instrument agreed with the story before the story was checked.
What this is not
It is not a Strider port. Strider Hiryu is not in this game and nothing here puts him there. What this establishes is the seat: the cell exists, it is fully wired, its data slots are located, and a character record sitting in it is proven to work end to end. Swapping the occupant is a different and much larger job — artwork, code translation, every reference repointed — and most of it is still open.
It is also not a download. There is no ROM to distribute here and there will not be one.
And the playtest was one match, partway, player one. Round two, a knockout, the win screen, the continue, the ending and the character as a CPU opponent are all untested. His specials and supers were never thrown, so his move data is unverified.
The interesting thing was never the byte. It is that a character everyone believes was removed from a game was, the whole time, sitting in the ROM behind a single zero.
